FLAT ‘L’ BRACKET – GALVANISED

FLAT ‘L’ BRACKET – GALVANISED

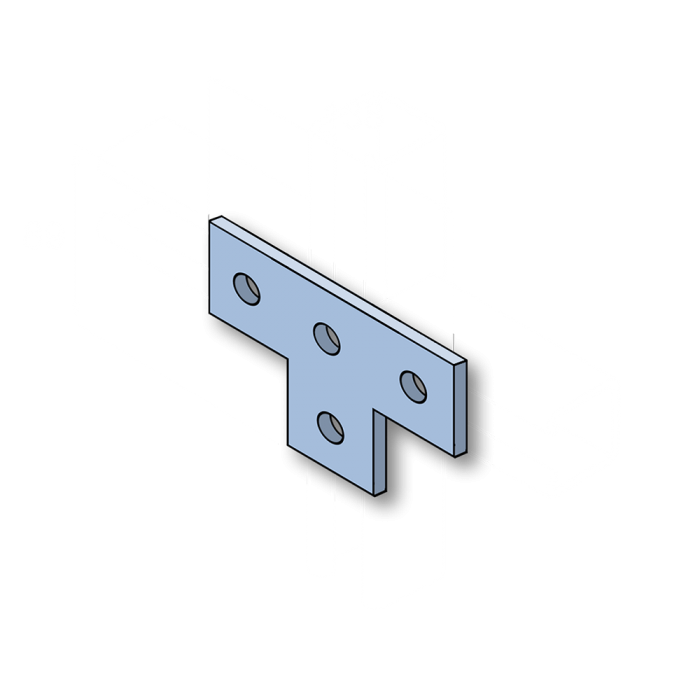

All dimensions in mm.

Product Specs Price list Range images

Description: FLAT 'L' BRACKET - GALVANISED - The Channel Accessory range of bracketry products are manufactured in accordance with BS6946:1988. The brackets are designed and manufactured to primarily support and fix together Channel (Strut) lengths in a metal framework situation. All Channel (Strut) lengths are manufactured in accordance with BS6946:1988.
